Product Description:

In a groundbreaking collaboration, MATRIX Robotics System and the World Robot Olympiad (WRO) present a specially designed robotics set tailored for the Future Innovators category. This comprehensive kit is created to empower the next generation of inventors, combining industry-grade components with educational accessibility. Whether you’re in the classroom or preparing for national and international competitions, this kit has everything to turn creative ideas into working robotic solutions.

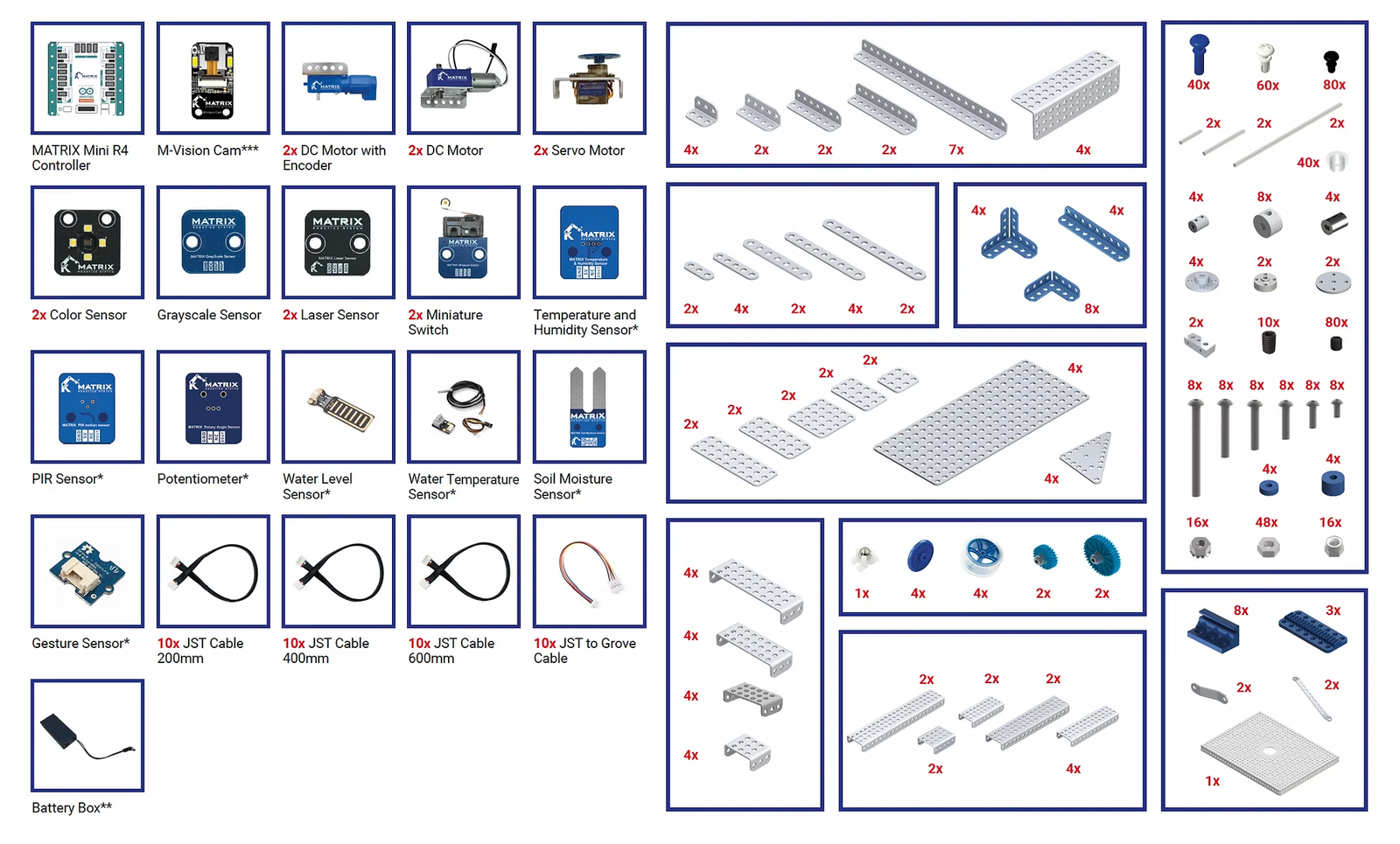

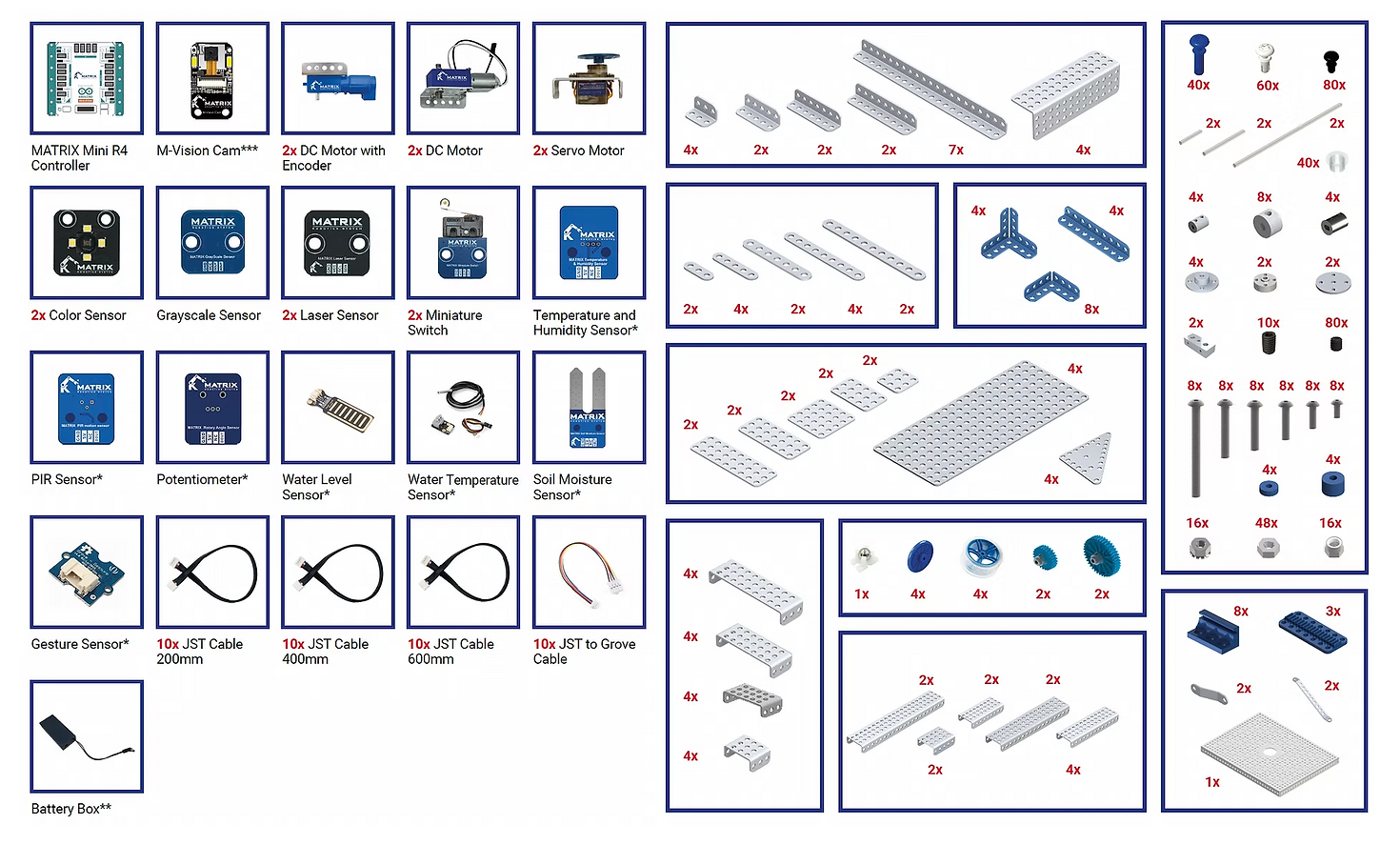

What’s Included in the Set:

The set includes the MATRIX Mini R4 controller, MATRIXBlock software, a comprehensive MATRIX sensor kit, and the powerful MATRIX M-Vision Camera—everything needed to build and program intelligent robots.

• MATRIX Mini R4 Controller (Arduino UNO R4 Wi-Fi-based)
• MATRIXBlock Software (Graphical and C++ programming)
• Complete MATRIX Sensor Kit
• MATRIX M-Vision Camera (for vision-based robotics)

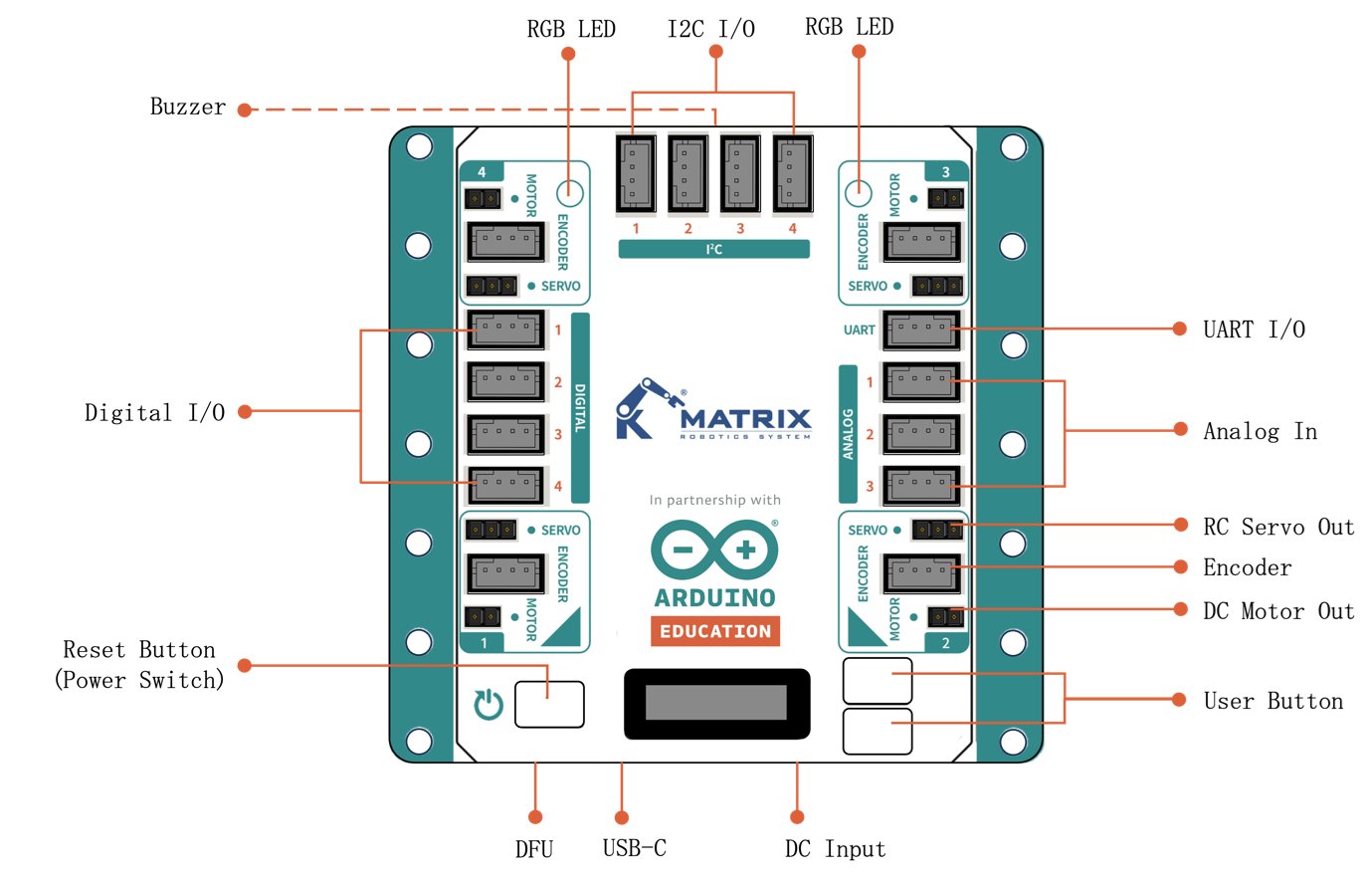

Cutting-Edge Controller: MATRIX Mini R4:

At the heart of the set is the MATRIX Mini R4 controller, powered by the Arduino UNO R4 Wi-Fi. This integration allows seamless Wi-Fi connectivity, offering greater flexibility for building smart, connected robotics projects. Whether you’re working on an AI-driven robot or an IoT-enabled solution, the controller delivers reliable performance for both basic and advanced applications.

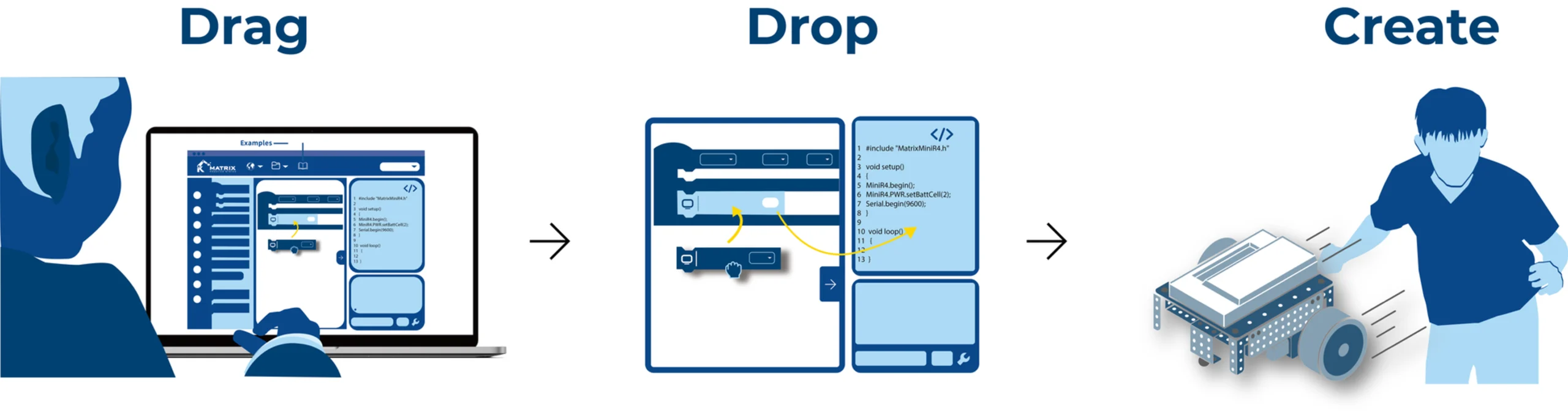

From Block Coding to C++: MATRIXBlock Software:

To make programming approachable for all levels, the set includes MATRIXBlock software, a modern graphical coding environment inspired by Scratch. Beginners can start with drag-and-drop blocks while advanced users can smoothly transition into C++ coding. The software also features a built-in serial port monitor for easy debugging and deeper understanding of programming logic.

Interactive Sensor Kit and Smart Camera:

The kit includes a full range of MATRIX sensors along with the powerful MATRIX M-Vision Camera, enabling students to explore:

• Real-time object recognition
• Motion tracking
• Environmental interaction

This enables the creation of intelligent robots that can “see” and “think”, offering a hands-on introduction to AI, automation, and IoT.

Versatile Learning and Competition Tool:

Whether used in classroom environments or during WRO competitions, this set is designed for both learning and high performance. It is ideal for:

• Beginners exploring STEAM subjects
• Experienced coders and makers building advanced robotic solutions

The combination of cutting-edge hardware and versatile software supports a wide variety of learning outcomes and competitive challenges.

MATRIX M-Vision Camera: Technical Specifications:

• Processor: STM32H7
• Clock Speed: 480MHz
• Flash Memory: 2Mbyte (User-accessible: ≥100Kbyte)
• SPAM (Static RAM): 1Mbyte
• Max Supported Resolution: 640 × 480 pixels
• Operating Voltage: 5V
• Operating Current:
  • 200mA (without fill-in light)
  • 350mA (with fill-in light)
• Ports: USB Type-C, PH2.0-4P (UART Communication)
• Mounting: Dual M4 fixing holes

Note: 1Mbyte = 8Mbit

Ideal For STEAM Education and Beyond:

This robotics set is perfectly aligned with the goals of modern STEAM education. It offers students hands-on experience in:

• Coding and programming (block-based and C++)
• Robotics and electronics integration
• Real-world problem solving and design thinking

It helps build critical thinking, teamwork, and creativity—skills essential for future careers in science, technology, engineering, arts, and mathematics.
